Library for 240x320 graphical display TFT. Driver ILI9341.

This blog presents a new version of the library. New functions were added and the bugs were fixed. Now, We can use an SD CARD to open BMP files.


Consider these features.
The version 2 can be used in microcontrollers with these features.

• Program Memory 32KB
• RAM Bytes 2,048

Request.
Email contact: armicrocontroller@gmail.com

The standard driver will be available for user that just need the single library for ili9341.
The current version 3 can be used  for the following displays:

• ILI9341 240x320
• ST7789 240x240
• ST7735 80x160
• SSD1331 96x64

Video.


Description of library.
This function initializes the driver ILI9341.
TFT_Init(void)
Example:
TFT_Init();

This function resets the display TFT.
TFT_Reset(void)
Example:
TFT_Reset();

This function sets the memory access control.
TFT_MemoryAccessControl(frame_memory)

• frame_memory: Frame memory, the configuration can be TFT_HORIZONTAL or TFT_VERTICAL.

Example:
TFT_MemoryAccessControl(TFT_HORIZONTAL);

This function draws a pixel on TFT.
TFT_Pixel(x, y, color)

• x: x position. Valid values: 0..240
• y: y position. Valid values: 0..320
• color: color parameter.

Example:
TFT_Pixel(100, 100, BLUE);

This function sets the size of dot.
TFT_SetDotSize(size)

• size: Size of dot. Valid values: 0, 1, 2, 3, 4, 5.

Example:
TFT_SetDotSize(2);
TFT_Dot(100, 100, BLACK);

This function draws a dot on TFT.
TFT_Dot(x, y, color)

• x: x position. Valid values: 0..240
• y: y position. Valid values: 0..320
• color: color parameter.

Example:
TFT_Dot(100, 100, BLACK);

This function sets the type of font.
TFT_SetFont(font, letterspacing)

• font: Pointer to read all the array.
• letterspacing: Letter spacing. Valid values: 1, 2, 3...

Example:
TFT_SetFont(Courier_New_Bold_20, 0);

This function draws a character on the TFT.
TFT_WriteChar(c, x, y, color1, color2)

• c: character to be written.
• x: x position. Valid values: 0..240
• y: y position. Valid values: 0..320
• color1: Top color.
• color2: Bottom color.

Example:
TFT_WriteChar('A', 10, 10, BLACK, WHITE);

This function writes text constant on TFT.
TFT_ConstText(buffer, x, y, color1, color2)

• buffer: Pointer to read all the array.
• x: x position. Valid values: 0..240
• y: y position. Valid values: 0..320
• color1: Top color.
• color2: Bottom color.

Example:
TFT_ConstText("pic18fxx.blogspot.com", 0, 0, BLACK, WHITE);

This function writes text variable on TFT.
TFT_Text(buffer, x, y, color1, color2)

• buffer: Pointer to read all the array.
• x: x position. Valid values: 0..240
• y: y position. Valid values: 0..320
• color1: Top color.
• color2: Bottom color.

Example:
unsigned char i;
char buffer2[20];
i = 22;
sprintf(buffer2, "%03d", i);
TFT_Text(buffer2, 10, 10, BLACK, WHITE);

These functions write text with alignment.
TFT_TextLEFT(buffer, y, color1, color2)
TFT_TextCENTER(buffer, y, color1, color2)
TFT_TextRIGHT(buffer, y, color1, color2)

• buffer: Pointer to read all the array.
• y: y position. Valid values: 0..320
• color1: Top color.
• color2: Bottom color.

Examples:
TFT_TextLEFT((char*)"ILI9341", 10, BLACK, WHITE);
TFT_TextCENTER((char*)"ILI9341",50, BLACK, WHITE);
TFT_TextRIGHT((char*)"ILI9341", 100, BLACK, WHITE);

This function fills screen with given color.
TFT_FillScreen(color)

• color: color parameter.

Example:
TFT_FillScreen(BRIGHTGREEN);

This function draws a box on TFT.
TFT_Box(x1, y1, x2, y2, color)

• x1: x coordinate of the upper left rectangle corner. Valid values: 0..240
• y1: y coordinate of the upper left rectangle corner. Valid values: 0..320
• x2: x coordinate of the lower right rectangle corner. Valid values: 0..240
• y2: y coordinate of the lower right rectangle corner. Valid values: 0..320
• color: color parameter.

Example:
TFT_Box(0, 0, 50, 50, BLUE);

This function draws a line on TFT.
TFT_Line(x1, y1, x2, y2, color)

• x1: x coordinate of the line start. Valid values: 0..240
• y1: y coordinate of the line start. Valid values: 0..320
• x2: x coordinate of the line end. Valid values: 0..240
• y2: y coordinate of the line end. Valid values: 0..320
• color: color parameter.

Example:
TFT_Line(1, 1, 100, 100, GREEN);

This function draws a rectangle on TFT.
TFT_Rectangle(x1, y1, x2, y2, color)

• x1: x coordinate of the upper left rectangle corner. Valid values: 0..240
• y1: y coordinate of the upper left rectangle corner. Valid values: 0..320
• x2: x coordinate of the lower right rectangle corner. Valid values: 0..240
• y2: y coordinate of the lower right rectangle corner. Valid values: 0..320
• color: color parameter.

Example:
TFT_Rectangle(1, 1, 100, 100, GREEN);

This function draws a rounded edge rectangle on TFT.
TFT_RectangleRound(x1, y1, x2, y2, radius, color)

• radius: radius of the rounded edge.

Example:
TFT_RectangleRound(1, 1, 100, 100, 6, GREEN);

This function draws a filled rounded edge rectangle on TFT.
TFT_RectangleRoundFill(x1, y1, x2, y2, radius, color)
Example:
TFT_RectangleRoundFill(1, 1, 100, 100, 6, GREEN);

This function draws a circle on TFT.
TFT_Circle(x1, y1, radius, color)

• x1: x coordinate of the circle center. Valid values: 0..240
• y1: y coordinate of the circle center. Valid values: 0..320
• radius: radius size
• color: color parameter.

Example:
TFT_Circle(100, 100, 10, BLACK);

This function draws a filled circle on TFT.
TFT_CircleFill(x1, y1, radius, color)
Example:
TFT_CircleFill(100, 100, 10, BRIGHTRED);

This function draws an image on a desired location.
TFT_Icon(buffer, x, y, width, height)

• buffer: Pointer to read all the array.
• x: x position.
• y: y position.
• width: width of the image in pixels.
• height: height of the image in pixels.

Example:
TFT_Icon(icon_play, 10, 16, 20, 34);

This function draws an image with transparent color on a desired location.
TFT_IconTransparent(buffer, x, y, width, height, color)

• buffer: Pointer to read all the array.
• x: x position.
• y: y position.
• width: width of the image in pixels.
• height: height of the image in pixels.
• color: transparent color.

Example:
TFT_IconTransparent(icon_speaker, 158, 25, 22, 18, WHITE);

How to configure the library.
Create a new project and copy the follows files.

• disptft.c, disptft.h
• spi_pic18f.c, spi_pic18f.h
• time_delay.c, time_delay.h
• datatypes.h
• font.c, font.h
• bitmap.c, bitmap.h
• bit_settings.h
• main.c

Connection.

Note:

The pins CS, RESET and DC can be configured in the file ili9341.h

TFT Bitmap Editor. C#

This software programmed at c# can be used to make bitmaps.

Software for making bitmaps

SD CARD.
This demo uses FatFs library. You can download this great library here!. You need to do some modifications to use FatFs with XC8 or just you can use the FatFs library configured by me.
FatFs has two variants:

• FatFs - Generic FAT Filesystem Module. This one is the most complete library.
• Petit FAT File System Module. Basically is limited in functions and does not support long file names. But this version can be used on microcontrollers with limited memory, for example a pic18f4550.

This function scans some files.
ScanFiles(buffer, next_previous)

• buffer: This parameter returns the name of file.
• next_previous: This parameter is used to move the tab. You can use SCAN_FILES, NEXT_FILE and PREVIOUS_FILE.

This function basically is used to show a list of files. The number of files is defined in storage.h
Example:
char buffer1[100];
TFT_SetFont(Courier_New_Bold_20, 0);
ScanFiles(buffer1, SCAN_FILES);

This function opens a file or directory.
OpenFile(buffer)

• buffer: This parameter reads the file name.

Basically using these functions you can select a file and open it.
Example:
char buffer1[100];
TFT_SetFont(Courier_New_Bold_20, 0);
ScanFiles(buffer1, SCAN_FILES);
while(1)
        {
         while(!BUTTON1)
                 {
                  ScanFiles(buffer1, NEXT_FILE);
                  Delay_ms(300);

                 }
        while(!BUTTON2)
                {
                 ScanFiles(buffer1, PREVIOUS_FILE);
                 Delay_ms(300);
                }
       if(BUTTON3 == 0)
         {
          OpenFile(buffer1);
         }
       }

SD CARD connection.

STM32 Support.
This library can be used on STM32. Basically any board with interface FSMC can be used. For this demo, the board STM32_F4VE will be configured.

Software.

This is the necessary software for building a project.

• STM32CubeMX
• System Workbench for STM32

Creating a new project from CubeMX.
Basically, In this step, we go to configure these aspects.

• RCC
• SYS
• FSMC
• GPIO

Copying the libraries.

Basically, in this step, we go to do the following.

• Copy the libraries.
• Set the path of the libraries.
• Compile the project.

Testing the Demo.
Basically, in this step, we go to do the following.

• Configure the ST-Link.
• Set your display.
• Burn the hexadecimal file.

Drives and "Hello World!

For now, these are the supported drives. You can add a new driver follow the format of the library.

• ILI9341
• SSD1289
• SSD1963


Why use this library?

• It is a library of low cost.
• Easy to understand.
• No complex code.

////

//////

Read More

Library for 128x64 graphical display OLED. Driver SSD1306.

OK. Now you need a best display for your projects!. Yeah, this display is your best choice. We have got the update 2.0 now.

Module Features.

• Resolution: 128 x 64 dot matrix panel.
• Power supply: 3.3V ~ 5V
• Interface: SPI
• Driver IC: SSD1306
• Light color: Yellow+blue

Request.
Email contact: armicrocontroller@gmail.com

What version do I need?
The version 1.0 is ideal for microcontroller with few ROM memory, this library has not got graphics functions.

The version 2.0 includes graphic functions and a new scroll function, ideal for projects like mp3 players. This library needs a little more of ROM memory. This version is FREE!.

Description of library.

Initializes the OLED module.
Oled_Init(void)
Example:
Oled_Init();

Sets font that will be used.
Oled_SetFont(_font, _width, _height, _min, _max)

•  _font: desired font.
• _width: sets the width in units of pixels.
• _height: sets the height in units of pixels.
• _min: sets the range minimum.
• _max: sets the range maximum.

Example:
Oled_SetFont(Terminal12x16, 12, 16, 32, 127);

• font name : Terminal12x16
• width 12 pixels
• height 16 pixels
• range: start in character 32, end in  character 127

We can use "GLCD Font Creator" to design new fonts, symbols and icons.
Note: Only fonts with multiples of 8 pixels in height (8, 16, 24, 32 ... )

Writes a char on the OLED.
Oled_WriteChar(c, seg, pag)

• c: char to be written.
• seg: sets the segment. Valid values: 0..127
• pag: sets the page. Valid values: 0..7

Example
Oled_WriteChar('A', 10, 3);

Prints text constant on OLED.
Oled_ConstText(buffer, seg, pag)

• buffer: text to be written.
• seg: sets the segment. Valid values: 0..127
• pag: sets the page. Valid values: 0..7

Example:
Oled_ConstText("OLED 128x64", 0, 4);

Prints text variable on OLED.
Oled_Text(buffer, seg, pag)

• buffer: text to be written.
• seg: sets the segment. Valid values: 0..127
• pag: sets the page. Valid values: 0..7

Example:
unsigned char i;
char buffer2[20];
i = 22;
sprintf(buffer2, "%03d", i);
Oled_Text(buffer2, 0, 3);

Prints text constant on OLED with scroll.
Oled_ConstTextScroll(buffer)

• buffer: text to be written.

Example:
Oled_SetFont(Terminal12x16, 12, 16, 32 , 127);
Oled_ResetScroll();
while(1){
Oled_ConstTextScroll("This is a new scroll function  ");
Delay_ms(50);
}

Prints text variable on OLED with scroll.
Oled_TextScroll(buffer)

• buffer: text to be written.

Example:
unsigned char i;
char buffer2[20];
i = 22;
sprintf(buffer2, "%03d   ", i);
Oled_SetFont(Terminal12x16, 12, 16, 32 , 127);
Oled_ResetScroll();
while(1){
Oled_TextScroll(buffer2);
Delay_ms(50);
}

Resets the scroll.
Oled_ResetScroll(void)
This function must be called before of a new scroll function.
Example:
Oled_ResetScroll();

Fills OLED memory.
Oled_FillScreen(pattern)

• pattern: byte to fill OLED memory.

Example:
Oled_FillScreen(0xFF);

Displays bitmap on OLED.
void Oled_Image(buffer)

• buffer: image to be displayed.

Example:
Oled_Image(truck_bmp);

Displays an image on a desired location.
Oled_Icon(buffer, seg, pag, _width, _height)

• buffer: image to be displayed.
• seg: sets the segment. Valid values: 0..127
• pag: sets the page. Valid values: 0..7
• _width sets the width of the image.
• _height sets the height of the image.

Example:
Oled_Icon(icon1, 20, 3, 32, 32);

Inverts the RAM memory.
Oled_InvertRam(seg1, pag1, seg2, pag2)

• seg1 sets the start segment. Valid values: 0..127
• pag1 sets the start page. Valid values: 0..7
• seg2 sets the end segment. Valid values: 0..127
• pag2 sets the end page. Valid values: 0..7

Example:
Oled_InvertRam(0, 0, 127, 7);

Draws a Pixel on OLED.
Oled_Pixel(x, y, color)

• x: x position. Valid values: 0..127
• y: y position. Valid values: 0..63
• color: color parameter. Valid values: 1,2,3

Example:
Oled_Pixel(40, 40, BLACK);

Draws a Line on OLED.
Oled_Line(x1, y1, x2, y2, color)

• x1: x coordinate of the line start. Valid values: 0..127
• y1: y coordinate of the line start. Valid values: 0..63
• x2: x coordinate of the line end. Valid values: 0..127
• y2: y coordinate of the line end. Valid values: 0..63
• color: color parameter. Valid values: 1,2,3

Example:
Oled_Line(0, 16, 127, 50, BLACK);

Draws a rectangle on OLED.
Oled_Rectangle(x1, y1, x2, y2, color)

• x1: x coordinate of the upper left rectangle corner. Valid values: 0..127
• y1: y coordinate of the upper left rectangle corner. Valid values: 0..63
• x2: x coordinate of the lower right rectangle corner. Valid values: 0..127
• y2: y coordinate of the lower right rectangle corner. Valid values: 0..63
• color: color parameter. Valid values: 1,2,3

Example:
Oled_Rectangle(16, 16, 112, 46, BLACK);

Draws a circle on OLED.
Oled_Circle(x1, y1, radius, color)

• x1: x coordinate of the circle center. Valid values: 0..127
• y1: y coordinate of the circle center. Valid values: 0..63
• radius: radius size
• color: color parameter. Valid values: 1,2,3

Example:
Oled_Circle(63, 31, 5, BLACK);

Schematic.

New driver V4.0 optimized for SPI and I2C interface.



Features.

• Easy integration.
• SPI and I2C fast refresh.
• 4 modes of rotation.
• MCC support.
• New functions.

• Microchip and STM32 support.


Displays supported.

• SSD1306            96x16
• SSD1306            128x32
• SSD1306            128x64
• SSD1309            128x64
• SH1106              132x64
• SH1107              64x128
• UC1609C          192x64
• ST7565R           128x64
• NOKIA5110       84x48

 How to port the library using MPLABX with MCC.





How to select a display.



 How to configure the library to be used on the I2C interface.



Read More

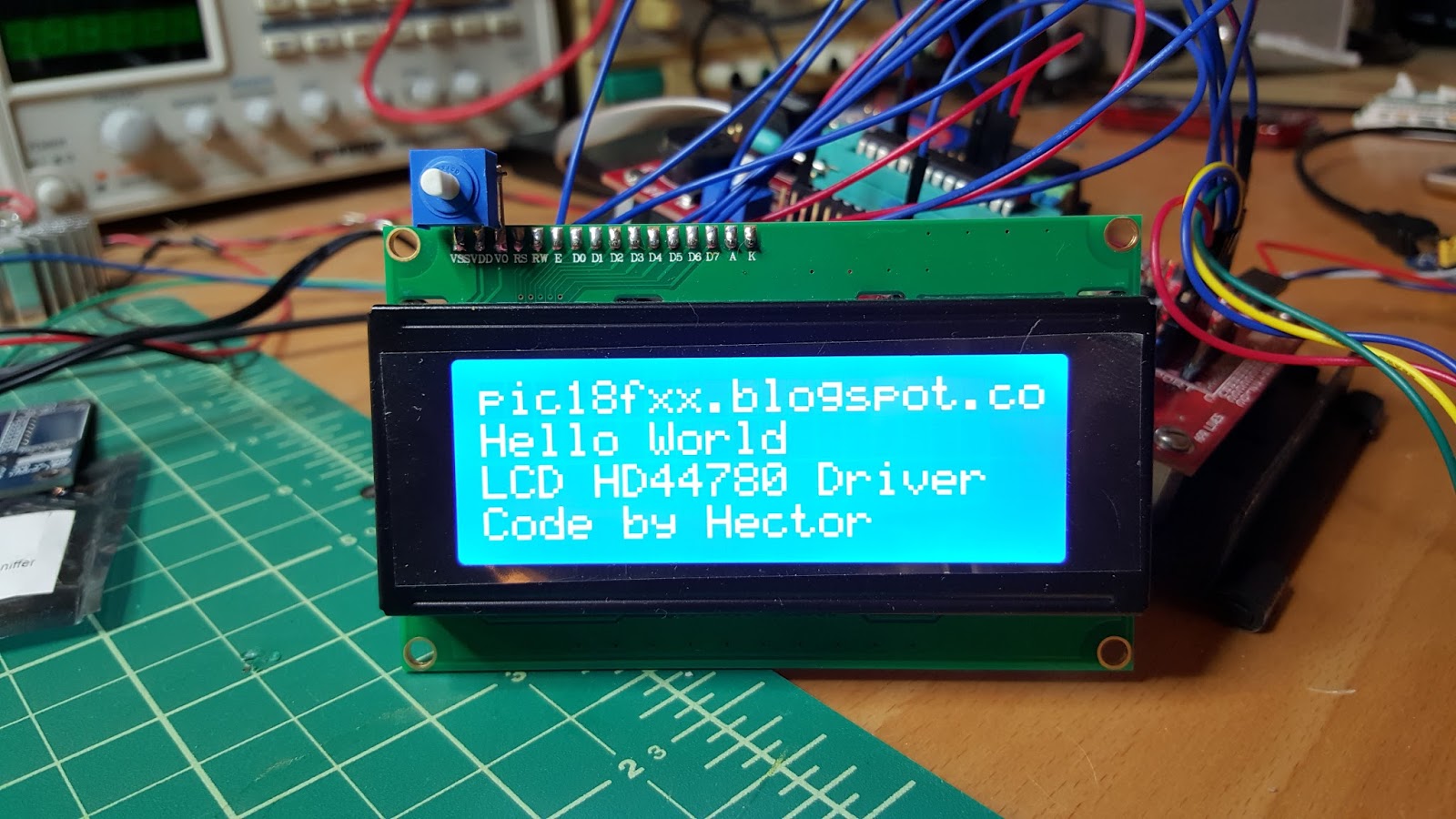

Library for LCD HD44780.

This library allows  control Liquid Crystal displays (LCDs) based on the Hitachi HD44780 (or a compatible). The library works with in 4 bit mode interface.

Brian Hicks made an evaluation of this code.

Video.

Description of library.

void Lcd_Init(void)
This function initializes the Lcd module.
Note: You can change the connection of lcd module in hd44780.h  file.
Example:
Lcd_Init();
Lcd_Command(LCD_CLEAR);

void Lcd_ConstText(y, x, buffer)
This function prints text  constant on the Lcd.

• y: Starting position row number. Valid values: 1, 2, 3, 4
• x: Starting position column number. Valid values: 1..20
• buffer: Byte of array

Example:
Lcd_ConstText(2, 1, "Hello World");

void Lcd_Text(y, x, buffer)
This function prints text on the Lcd.

• y: Starting position row number. Valid values: 1, 2, 3, 4
• x: Starting position column number. Valid values: 1..20
• buffer: Byte of array

Example:
int i = 50;
char buffer1[20];
sprintf(buffer1,"%3d",i);
Lcd_Text(1, 1, buffer1);

void Lcd_WriteChar(y, x, c)
This function prints a character on the Lcd.

• y: Starting position row number. Valid values: 1, 2, 3, 4
• x: Starting position column number. Valid values: 1..20
• c: Character to be written

Example:
Lcd_WriteChar(1, 4, 'H');

void Lcd_CharCP(c)
This function prints text on Lcd at current cursor position.

• c: character to be written

Example:
Lcd_CharCP('R');

void Lcd_Command(command)
This function sends command to Lcd.

• command: command to be sent

Example:
Lcd_Command(LCD_BLINK_CURSOR_ON);
// Note: All commands available are in file hd44780.h

Schematic.

Direct Download.

Schematic.

Read More
